三相桥式驱动器--PN7136

产品分类: 电机驱动芯片
    The PN7136 is a high voltage, high speed power MOSFET and IGBT drivers with a three independent high and low side referenced output channels for 3-phase applications. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operates up to 600V. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic. outputs, down to 3.3V l
    订购热线:18929103949

               三相桥式驱动器--PN7136

      一 概述

      The PN7136 is a high voltage, high speed power MOSFET and IGBT drivers with a three independent high and low side eferenced output channels for 3-phase applications. The floating channels can be used to drive N-channel power MOSFETs or IGBTs in the high side configuration which operates up to 600V. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic. A current trip function which terminates all six outputs can be derived from an external current sense resistor. An enable function is available to terminate all six outputs simultaneously. An open-drain FAULT signal is provided to indicate that an over-current or under-voltage shutdown has occurred. Over-current fault conditions are cleared automatically after a delay programmed externally via an RC network connected to the RCIN input. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications.



      二 特性

      * Fully operational to +600V

      * 3.3V logic compatible

      * dV/dt Immunity ±50V/nsec

      * Floating channel designed for bootstrap operation

      * Gate drive supply range from 10V to 20V

      * UVLO for all channels

      * Cross-conduction prevention logic

      * Over-current shutdown turns off all six drivers

      * Externally programmable delay for automatic fault clear

      * Independent 3 half-bridge drivers

      * -5V negative Vs ability



      * Matched propagation delay for all channels



      三 应用

      * Motor Control

      * Air Conditioners/ Washing Machines

      * General Purpose Inverters

      * Micro/Mini Inverter Drives

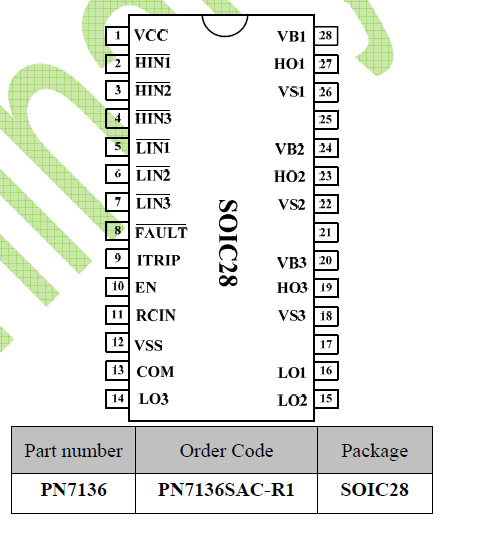

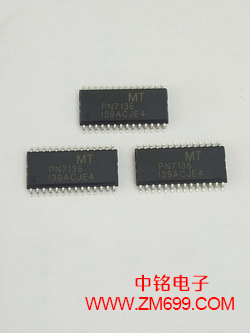

      四 封装

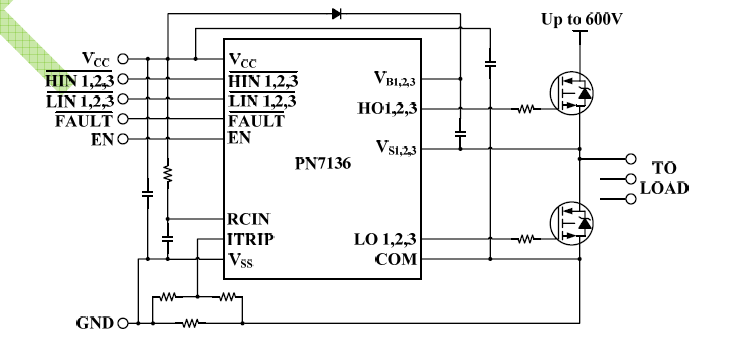

      五 典型应用
