MOS管 NCE4060k

产品分类: mos管
    The NCE4060K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications.
    订购热线:400-788-7770
    龙腾N渠道650V,20A超级MOS管--LND20N65/LNB20N65
    龙腾N渠道650V,20A超级MOS管--LND20N65/LNB20N65
    Power MOSFET is fabricated using the VDSS advanced planer VDMOS technology. The resulting device has low conduction resistance,superior switching performance and high avalanche energy.
    龙腾N渠道650V,7A超级MOS管--LND7N65D
    龙腾N渠道650V,7A超级MOS管--LND7N65D
    The Power MOSFET is fabricated using the advanced planar VDMOS technology. The resulting device has low conduction resistance,superior switching performance and high avalance energy.
    龙腾N渠道650V,16A超级MOS管--LND16N65
    龙腾N渠道650V,16A超级MOS管--LND16N65
    Power MOSFET is fabricated using the VDSS advanced planer VDMOS technology. The resulting device has low conduction resistance,superior switching performance and high avalanche energy.



      NCE N-Channel Enhancement Mode Power MOSFET



      ModleNCE4060K





      一、Description

      The NCE4060K uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications.



      二、General Features

      l  VDS =80V,ID=105A

      RDS(ON)< 6.5m @ V =10V

      l  High density cell design for ultra low Rdson

      l  Fully characterized avalanche voltage and current

      l  Good stability and uniformity with high EAS

      l  Excellent package for good heat dissipation

      l  Special process technology for high ESD capability



      三、Application



      l  Loadswitching

      l  Hard switched and high frequency circuits

      l  Uninterruptible power supply



      四、Package Marking And Ordering Information



      NCE4060K 封装和订购信息

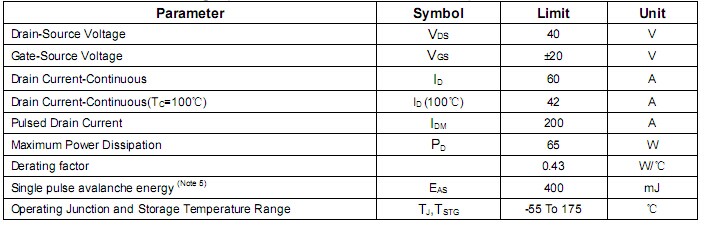

      五、Absolute Maximum Ratings (T =25unless otherwise noted)



      NCE4060K 最大参数
