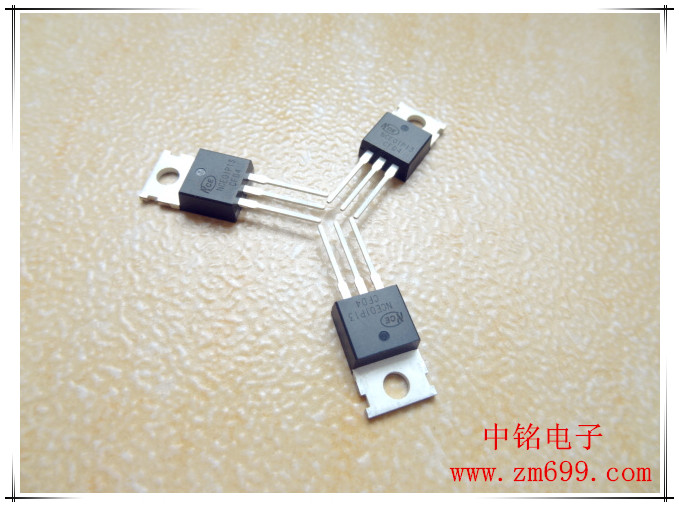

MOS管 NCE01P13

产品分类: mos管
    The NCE01P13 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. It is ESD protested
    订购热线:18929103949
    龙腾N渠道650V,20A超级MOS管--LND20N65/LNB20N65
    龙腾N渠道650V,20A超级MOS管--LND20N65/LNB20N65
    Power MOSFET is fabricated using the VDSS advanced planer VDMOS technology. The resulting device has low conduction resistance,superior switching performance and high avalanche energy.
    龙腾N渠道650V,7A超级MOS管--LND7N65D
    龙腾N渠道650V,7A超级MOS管--LND7N65D
    The Power MOSFET is fabricated using the advanced planar VDMOS technology. The resulting device has low conduction resistance,superior switching performance and high avalance energy.
    龙腾N渠道650V,16A超级MOS管--LND16N65
    龙腾N渠道650V,16A超级MOS管--LND16N65
    Power MOSFET is fabricated using the VDSS advanced planer VDMOS technology. The resulting device has low conduction resistance,superior switching performance and high avalanche energy.



      NCE N-Channel Enhancement Mode Power MOSFET



      ModleNCE01P13







      一、Description



      The NCE01P13 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. It is ESD protested



      二、General Features



      l  VDS = 100V,ID= -13A

       RDS(ON)< 200m @ VGS =10V  (Typ:170m)

      l  Super high dense cell design

      l  Advanced trench process technology

      l  Reliable and rugged

      l  High density celldesign for ultra low on-resistance



      三、Application

      l  Power switch

      l  DC/DC converters

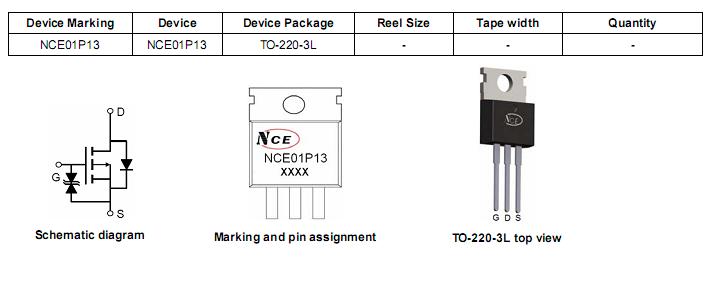

      四、Package Marking And Ordering Information



       NCE01P13 封装和订购信息

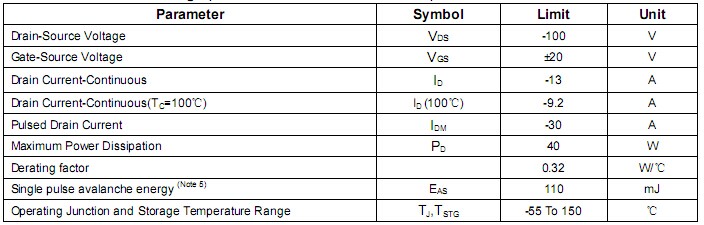

      五、Absolute Maximum Ratings (T =25unless otherwise noted)



       NCE01P13 最大参数
